Compressed air maintenance unit


Item no.: 25029L
EAN: 4033592086820

Information about the product

Description

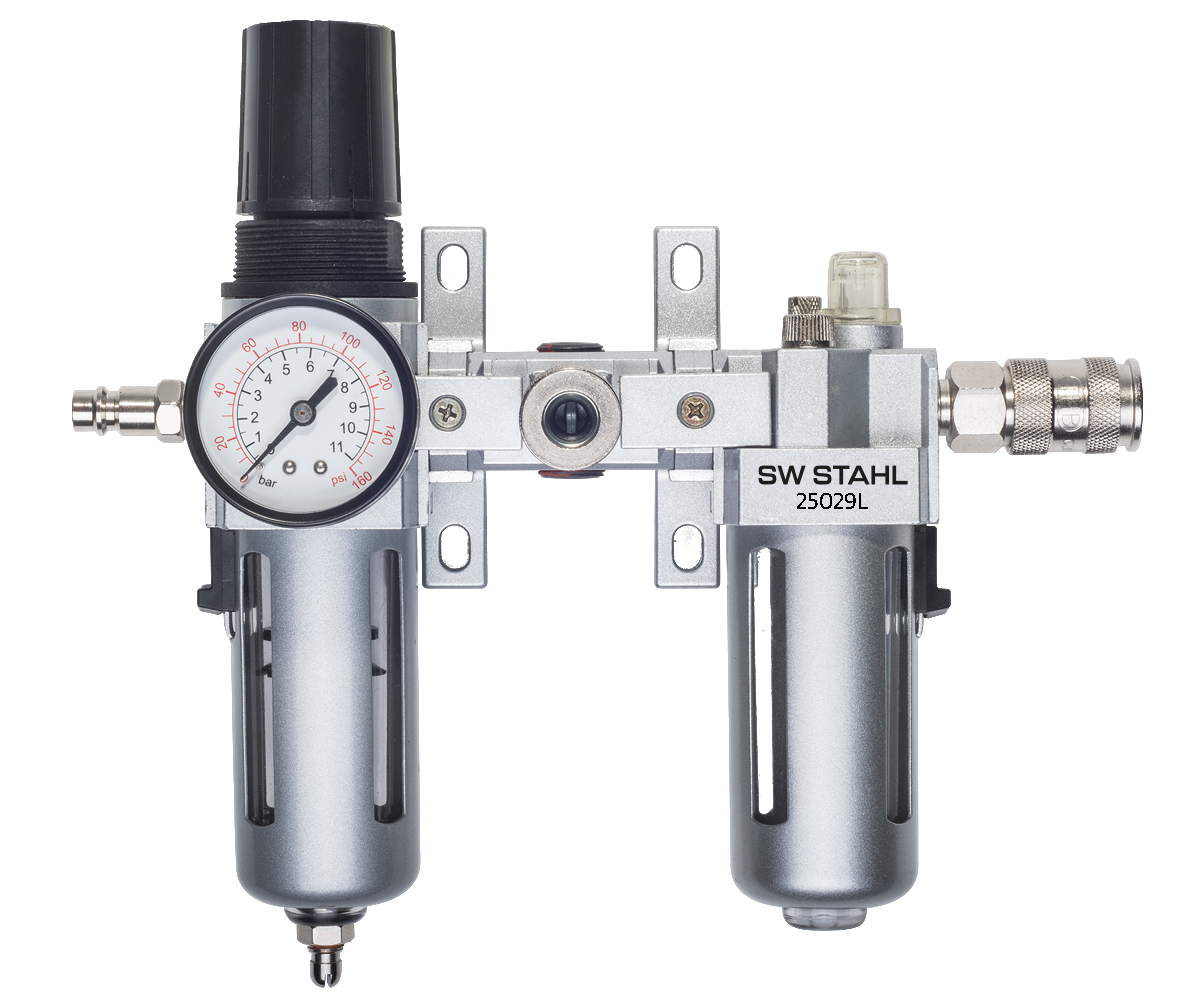

The compressed air maintenance unit consists of pressure regulator, moisture separator and oil-mist lubricator, and thus offers a complete maintenance unit for your pneumatic tools. Two independent extraction points with quick coupling reliably supply filtered and dry compressed air, for example for spray guns, or additionally oiled compressed air, for example for impact screwdrivers. In this way you achieve optimum conditions for the tools in use and extend their service life.

  • Maintenance unit with connection for air supply and 2 quick couplings incl. pressure gauge
  • Air pressure in the intake: max. 15 bar
  • Adjustment range of the regulator : 0.5 ~ 11 bar
  • Flow rate: 3,100 l/min
  • Connection: 12.5 mm (1/2")

Technical data

Temperature range from [°C]
Temperature range to [°C] 60
Thread Size, compressed air connection 1/2
Max. air inlet pressure to [bar] 15
Nenndurchfluss [l/min] 3100
Length [mm] 240
Width [mm] 0.23000
Height [mm] 0.10000
Weight [kg] 2.22000

Spare and wear parts

Item no. variant Name
25029L-1 - Drainage glass
25029L-2 - Oiling glass
25029L-3 - Manometer
