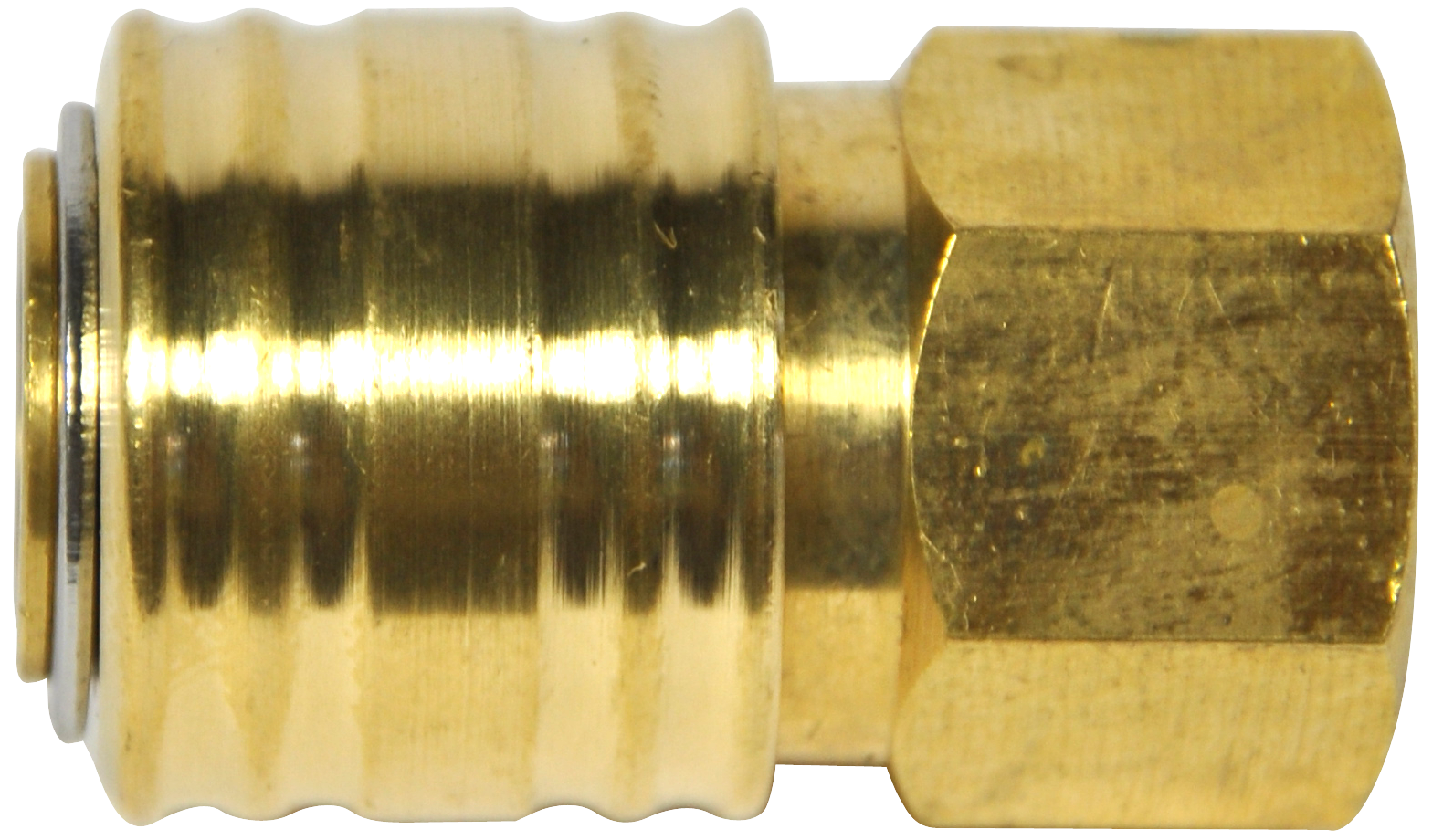

Compressed air quick coupling, one-hand operation


Item no.: 25082L
EAN: 4033592078672


variant: L SB
L: Loose and SB: SB-packing

Information about the product

Description

DN 7.2, with internal thread

  • Brass
  • With non- return valve
  • Nominal flow: 1300Nl/min (at 6 bar pre-pressure and 1 bar pressure loss)

Technical data

Length [mm] 43
Inner thread [inch] 1/4"
Temperature range from [°C] -10
Width [mm] 25
Temperature range to [°C] 90
Height [mm] 25
Quality Premium
Weight [kg] 0.08700
Operating pressure to [bar] 16
Packaging Poly bag

Similar items

Item no. variant Name
25082L L SB Compressed air quick coupling, one-hand operation
25078L - Compressed air quick coupling, one-hand operation, 3/8"
25077L - Compressed air quick coupling, one-hand operation, 1/2"
